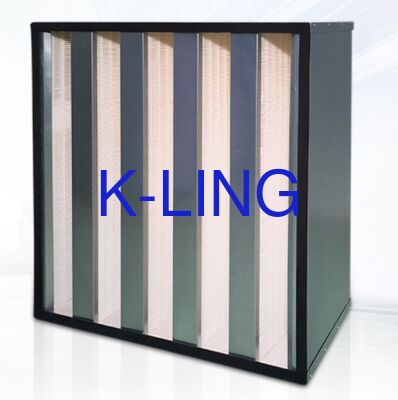

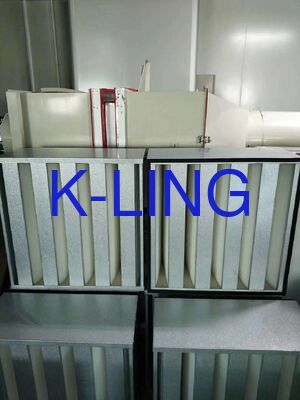

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

সাক্ষ্যদান
চীন KeLing Purification Technology Company সার্টিফিকেশন
চীন KeLing Purification Technology Company সার্টিফিকেশন
ক্রেতার পর্যালোচনা
কেলিং 25 অক্টোবর, ২০১ on তে PO NO.M170807 এর বিপরীতে নিম্নলিখিত পণ্যগুলি সাফল্যের সাথে সরবরাহ করেছিল; তাদের সরবরাহিত এয়ার ফিল্টারগুলি ইনস্টলেশনের পর থেকে সন্তোষজনকভাবে কাজ করছে W আমরা তাদের পণ্যগুলিতে সন্তুষ্ট।

—— সিম্পার ফার্ম

যেহেতু আমরা তাদের সাথে কুপারটি করি, তারা সর্বদা ভাল মানের অফার দেয় এবং আমাদের কাছে সময় মতো বিতরণ রাখে, আমরা তাদের সদয় সহায়তার জন্য অভিযুক্ত হই!

—— নাসির

এটি প্রমাণ করার জন্য যে আমরা ইউ প্রকারের বায়ু ঝরনা টানেল, এয়ার শাওয়ার এবং এইচপিএ ফিল্টার, গৌণ বায়ু ফিল্টার, কেলিং পরিশোধক প্রযুক্তি কোং লিমিটেড, 3 সি01 টিয়ান ফেং কমার্স স্কয়ার, মিড বিল্ডিং, নং 133, বায়ুন এভি থেকে আমাদের প্রকল্পের জন্য পারফিল্টার কিনেছি bought , বৈায়ুন ডিসট্রিক্ট, গুয়াংজু, গুয়াংডং, চীন চুক্তি নং: 2014/4119005942 এর বিরুদ্ধে 22 অক্টোবর, ২০১৮

—— IATEC, আর্জেন্টিনা

পণ্যটি প্রত্যাশার চেয়ে দ্রুত পৌঁছেছিল এবং তারা যা আদেশ করেছিল তা ছাড়াও তারা বিশেষ কিছু পাঠিয়েছে। ভাল মানুষ এবং দ্রুত পরিষেবা!

—— মোহাম্মদ সাদ

তোমার দর্শন লগ করা অনলাইন চ্যাট এখন

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

বড় ইমেজ :  Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

পণ্যের বিবরণ:
পরিচিতিমুলক নাম: KELING
সাক্ষ্যদান: CE
Model Number: KEL-HF
প্রদান:
Minimum Order Quantity: 1
মূল্য: negotiable
Packaging Details: Plywood Packing
Delivery Time: 10 Working Day
Payment Terms: T/T
Supply Ability: 3000

Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size

বিবরণ
ফিহার কণা: ≥ 0.3um প্রাথমিক প্রতিরোধ: 200 Pa এর কম
পুরুত্ব: 69/78/150/220 অন্য নাম: Cleanoom টার্মিনাল পরিস্রাবণ ইউনিট
ফেসগার্ড: ডায়মন্ড আকৃতির ধাতু প্রতিরক্ষামূলক নেট গ্যাসকেট: PU / ইভা উপাদান / জেল সিলান্ট
বিভাজন: গরম মেটাল আঠালো পণ্যের নাম: মিনি-প্লেটেড HEPA ফিল্টার
বিশেষভাবে তুলে ধরা:

H13 - U15 Efficiency HEPA Air Filter

,

≥ 0.3um Particles Cleanroom Terminal Filtration Unit

,

1175 x 575 x 69 mm Size Mini-Pleated HEPA Filter

Mini-plated V Shape HEPA Filter with Lower Initial Resistance
Suitable for clean room air management and filtration, this innovative filter design maximizes efficiency while reducing energy consumption.
Key Advantages
The mini-pleats V-shape HEPA filter increases the filtration surface area by 40-60% within the same frame size. This lowers initial air resistance to 90-200 Pa at 0.45 m/s face velocity, reducing energy consumption by up to 40%.
Thermal and Chemical Resilience
Withstands continuous operation at ≤ 80°C (up to 250°C for specialized models) and resists humidity (≤100% RH). Materials like borosilicate glass fiber minimize outgassing, ideal for semiconductor/pharma applications.
High Dust-Holding Capacity
Deep pleats (40-75 mm) trap particulates efficiently, extending service life to 12-18 months—ideal for high-particulate settings like manufacturing.
Corrosion-Resistant Framing
Anodized aluminum or galvanized steel frames with powder-coated guard nets protect against chemical exposure and mechanical stress.
Product Features
  • Mini-pleated V-shaped HEPA filters excel through structural efficiency (self-supporting pleats), energy economy (low resistance), and adaptive durability (custom frames/temperature tolerance).
  • Their design balances high particulate capture with lifecycle cost savings, making them pivotal in critical environments like semiconductor fabs.
  • For technical validations, refer to ISO 14644-3 leak testing protocols.
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size 0
Technical Specifications
Product Name Mini-Pleated V Shape HEPA Filter
Other Name Cleanroom Terminal Filtration Unit
Faceguard Diamond Shaped Metal Protective Net
Thickness 69 / 78 / 150 / 220 mm
Gasket PU / EVA Material / Gel Sealant
Efficiency H13 - U15
Filtering Media Glassfibre Media
Filter Particles ≥ 0.3 μm
Partition Hot Melt Adhesive
Size 1175 x 575 x 69 mm
Mini-Pleated HEPA Filter with H13 - U15 Efficiency for ≥ 0.3um Particles in 1175 x 575 x 69 mm Size 1
Customization Options
  • The anodized aluminum frame resists corrosion from cleaning agents like isopropyl alcohol and peracetic acid used during maintenance cycles.
  • Hydrophobic borosilicate glass fiber media prevent moisture absorption, ensuring stable performance under high-humidity conditions (up to 60% RH) common in EUV lithography areas.
  • Each filter undergoes rigorous DOP/PAO scanning per IEST-RP-CC034.1 to verify integrity before installation.
  • In high-throughput fabs producing 3D NAND or DRAM, the extended dust-holding capacity of V-pleat filters allows service intervals of 12-18 months, reducing downtime and contamination risks during changeouts.
  • Their modular compatibility with standard FFU grids enables rapid deployment and scalability during facility expansions.
  • Low outgassing materials ensure no volatile organic compounds (VOCs) interfere with sensitive photoresist chemistry.
  • As node sizes shrink below 3 nm, particle control becomes exponentially more critical, making V-shaped HEPA filters a foundational element in yield.
